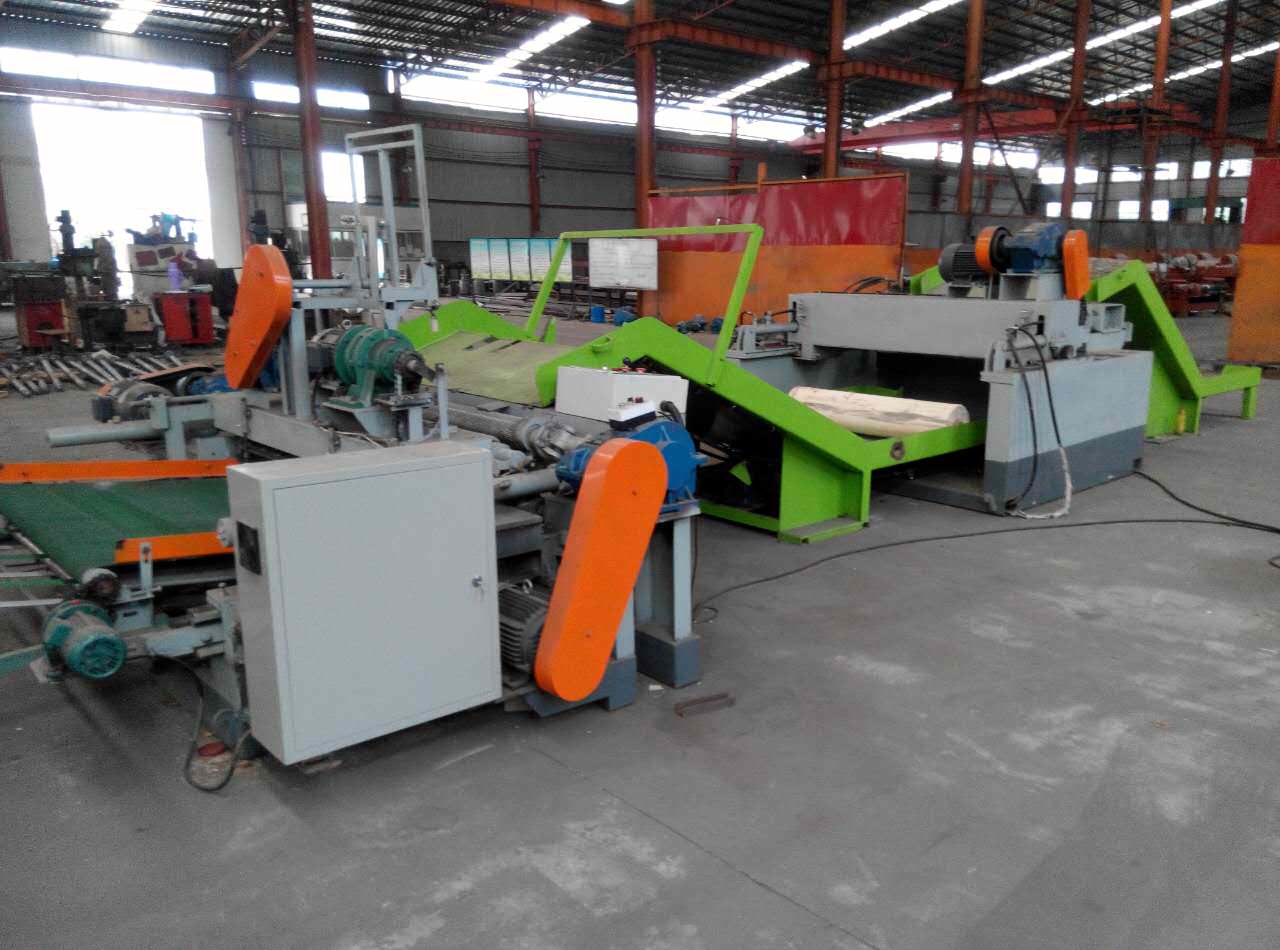

4 feet CNC veneer peeling machine

CNC spindleless veneer peeling and cutting machine is the newest model of veneer peeling machine for veneer production. Adopted advanced technologies (obtained patents), we have some distinctive features:

Auxiliary debarking and rounding.

High precision CNC system improves the thickness uniformity and width accuracy, as well as ensures remarkable full-sized tail veneer.

Digital show working condition, providing debugging data conveniently.

Automatic lubrication oil system reduces the machine friction, save the lubrication work time.

Chroming harden cross rollers and big diameter bearings ensure the rollers and bearings have long working life.

Feed screw propulsion system is applied due to its perfect performance and compact structure.

Model                                                      YGXQ50-130

Max. working log diameter                         500mm

Max. working log length                             1300mm

Min. diameter of left log                             32mm  /25mm (without rounding function)

Roller size and speed                                  125mm*1370mm and 125mm*1430mm 128r/min

Veneer thickness                                        0.8-3.6mm

Rotary peeling knife size(L*W*H)                1400*130*12.7mm(can change to use local knife).

Rotary cutting knife size(L*W*H)                1400*70*10mm

Motor power                                            26.2kw   (7.5kw*3+2.2kw*1+1.5kw*1)

Rolling curve speed                                   42m/min

Overall dimension(L*W*H)                         3320*2200*1360mm

Weight                                                             3500kg
