> veneer composing

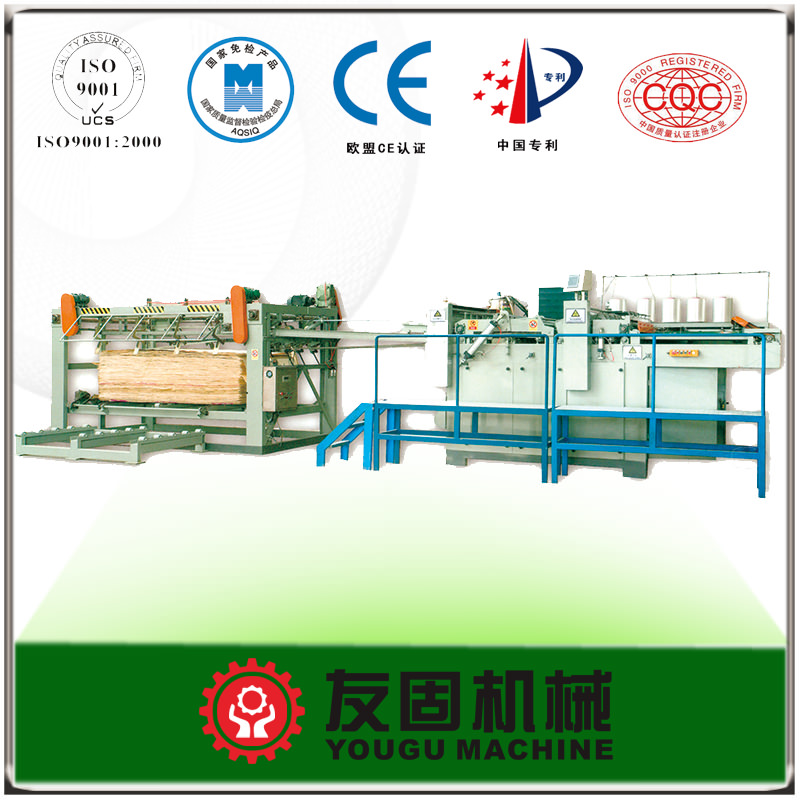

automatic veneer composer
- automatic
- veneer composer
- veneer jointing machine
- veneer jointer
- Product description: automatic jointing veneer,size can adjust,work fast
PRODUCT INTRODUCTION
veneer composer
the machine is mainly used for the production of three-ply board,sandwich board, LVL,floor substrate, furniture panel, building film face board, container board, Melamine Faced Board etc, and it can also be used for the vertical splicing of rotary cut median plate with the thickness of 1.0-4.0mm.this changes the traditional manual decking technology and makes plywood decking unitized and automatic.
model YGSP-4
working width mm 600-1270
working length mm 600-2560
working thickness mm 1.0-4.0
length of knife mm 1350
feeding speed (m/min) 32
electric power requirement (kw) 20
area occupied 4mX10m
machine weight(kgs) 9000
