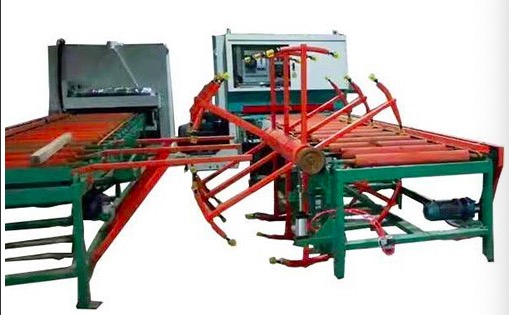

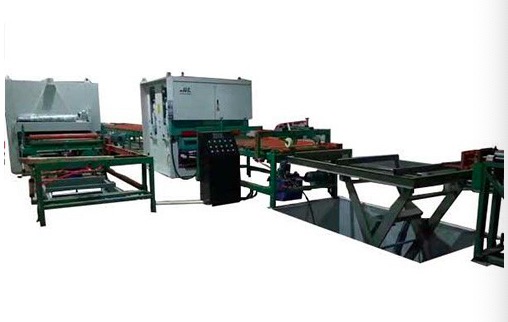

plywood sanding and edge cutting line
- automatic plywood making machine
- plywood sanding machine
- plywood edge cutting machine
- automatic turning machine
- Product description: sanding machine assembly line: The machine is mainly used for setting thickness and fine sanding of plywood, particleboard, ecological board, medium and high density board, integrated wood plate, joi
PRODUCT INTRODUCTION
Application scope of sanding machine assembly line:
The machine is mainly used for setting thickness and fine sanding of plywood, particleboard, ecological board, medium and high density board, integrated wood plate, joinery board, calcium silicate board, cement fiberboard and other boards. The equipment adopts European innovative manufacturing process, further improving the rationality of equipment structure, improving the processing accuracy and continuous use characteristics (performance).
Technical parameters:
Outline sizeNet weight of equipment| Model | BSG5213R-RP | BSG5313R-RP |
| Processing width | 1300MM |
1300MM |
| Processing thickness | 2.5-80MM |
2.5-80MM |
| Processing length |
≥500MM |
≥500MM |
| First belt speed | 26M/S |
26M/S |
| Second belt speed | 18M/S |
18M/S |
| Third belt speed |
|
18M/S |
| Conveying speed | 6-30M/MIN |
6-30M/MIN |
| Main motor power | 55KW 30KW | 55KW 37KW 22KW |
| Power of conveying motor | 5.5KW |
5.5KW |
| Total power of equipment | 92KW | 120KW |
| Working air pressure | 0.55MPA |
0.55MPA |
| Dust storm | 15000M³/H |
18000M³/H |
| Belt size | 2500*1320MM |
2500*1320MM |
| 2900*2450*2150MM | 2900*2900*2150MM |
|
| 6500KG | 9000KG |
